Horizontal High-Speed CNC Panel Saw With Front Feeding Method For Plywood
Product name: CNC computer panel saw
CNC computerized cutting saw, also known as computer panel saw, automatic panel saw, automatic panel saw, is a high-precision, high-efficiency, low labor cost, widely used in panel furniture, decorative materials, organic A CNC automatic cutting machine for sawing in materials, aviation composite materials and other industries. It is an important cutting machine in the modern sheet metal cutting and processing industry, which can realize automatic cutting.
| Name | Horizontal High-Speed CNC Panel Saw With Front Feeding Method For Plywood |
| Model | ZDS-330 |
| Maximum cutting length | 3300mm |
| Maximum cutting thickness | 100~120mm |
| Positioning method | Automatic |
| Positioning accuracy | ±0.02mm |
| Cutting accuracy | ±0.15mm |

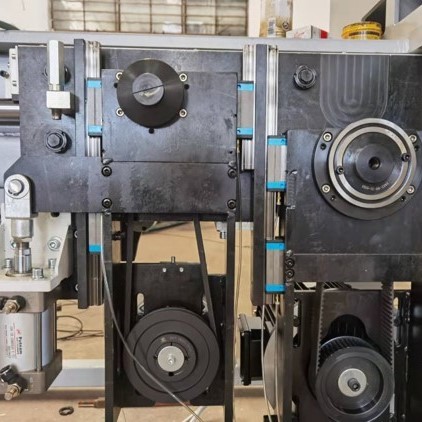

| Main saw motor power | 15kw |
| Main saw blade diameter | 400~450mm |
| Main saw shaft diameter | 60mm |
| Main saw speed | 3800rpm |
| Saw car servo motor power | 1.5kw |
| Mechanical hand servo motor | 1.5kw |
| Vice saw motor power | 1.5kw |
| Vice saw blade diameter | 180mm |
| Vice saw shaft diameter | 30mm |
| Vice saw speed | 6100rpm |
| Feeding speed | 0~80m/min |
| Cutting speed | 0~80m/min |
| Return speed | 0~120m/min |
| Air pressure | 0.6~0.7mpa |
| Machine tool dimension | 5600*6000mm |
| Net weight | About 5800kg |
| Total power | 22kw |
Features:
1. The stable operating system ensures the smooth operation of the whole machine, automatic optimization, automatic data import, automatic positioning and cutting, and automatic discharge. The cutting process does not require manual intervention, just discharge the material to be cut and take out the cut material. That's it, efficient and safe, without relying on skilled hands;
2. The whole machine is reinforced and welded with high-quality steel. It is annealed at high temperature by large heat treatment equipment, and then processed by large gantry CNC. The body is solid and durable, the cutting is accurate and stable, and it can withstand high-intensity work for a long time;

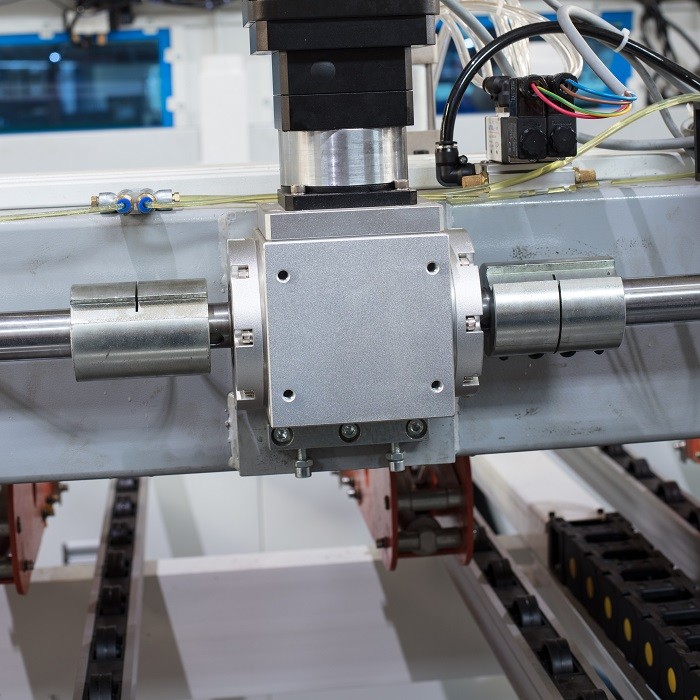

3. The feeding accuracy is precisely controlled by a high-precision servo system. The original imported CST planetary reducer, grinding-grade rack and pinion drive, the positioning error is as low as ±0.02mm; the cutting is also driven by a high-precision servo motor, the main motor is 15KW, and the cutting Powerful, can withstand high-intensity continuous work in consecutive shifts;
4. For cutting, the machine can be remotely connected to Wifi to import data or copy and import data through U disk, automatically generate cutting requirements and cutting diagrams, without manual typesetting, the machine automatically instructs cutting, and directly starts cutting after placing the plate. The target plate is cut, with low labor intensity and high work efficiency (it can equal the processing efficiency of 3~4 precision saws)
