Woodworking CNC Machine Automatic Six Sides Cnc Drilling Machine With Double Drill
Woodworking CNC Machine Automatic Six Sides Cnc Drilling Machine With Double Drill
1 Screw drive, higher precision, the error is within 0.05-0.1mm, and the cumulative tolerance is within ±0.2mm.
2 Automatically detect the length of the plate to prevent misalignment.
3 Depending on the needs of your site, choose front or rear discharge.
4 The unique clamping device can reduce the minimum range of the processed plate to within 10mm.
5 Taiwan LNC control system can realize remote update of database.
6 Through HHM software control and online production with other equipment, unmanned intelligent production can be realized.
| Processing Size Range | Maximum width | 1200mm |
| Minimum width | 50mm |
| Maximum length | 5000mm |
| Minimum length | 120mm |
| Maximum thickness | 48mm |
| Working Stoke & Max.Position Speed | X axis | 5000mm & 130m/min |
| Y axis | 1680mm & 55m/min |
| Z axis | 90mm & 30m/min |
| U axis | 5000mm & 130m/min |
| V axis | 1200mm & 80m/min |
| W axis | 100mm & 30m/min |
| A axis | 1260mm & 30m/min |
| TOP Drilling unit: | Vertical spindles | 12pcs |
| Horizontal Spindle | 8pcs |
| Drilling box motor speed | 3400rmp |
| Router Motor power | 3.5kw speed18000rpm |
| Bottom Drilling unit: | Vertical spindles | 9pcs |
| Horizontal Spindle | 0pcs |
| Drilling box motor speed | 3400rmp |
| Router Motor power | 3.5kw speed 18000rpm |
| Other Data: | Working table height | 960mm |
| Total Power | 19.2kw |
| Voltage | 380V/50Hz |
| Working air pressure | 0.6-0.8Mpa |
| Weight | 3500kg |
| Overall size | 5800*2840*2200mm |
Inovance private server motor, control gripper, fast and precise positioning, up to 130m/min.

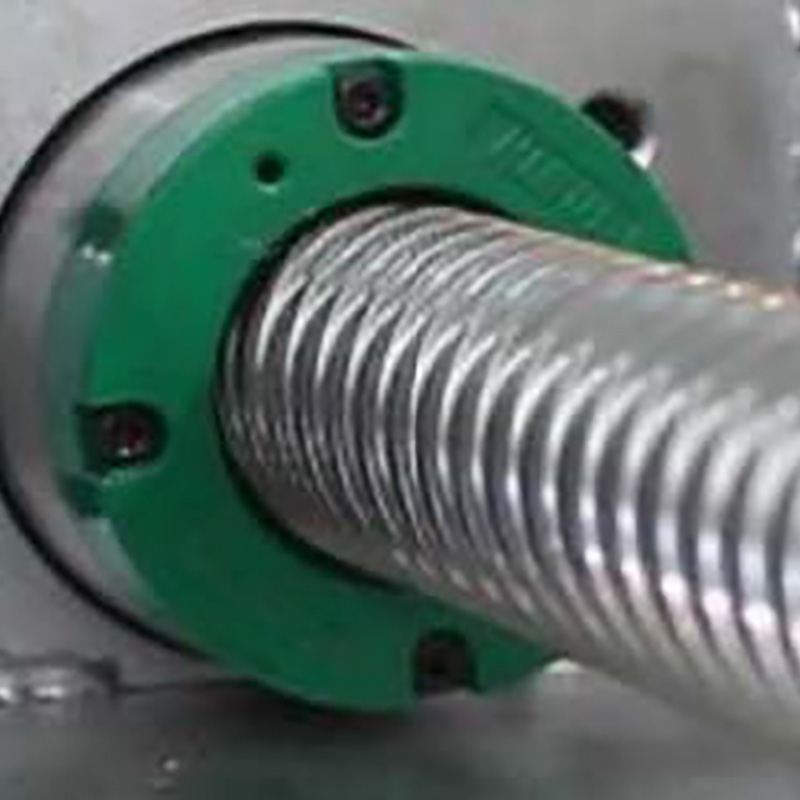

Taiwan HIWIN Ball Screw Drive, the screw drive error is within 0.05-0.1MM, the cumulative error is within ±0.2MM, and the service life of the whole machine is improved.

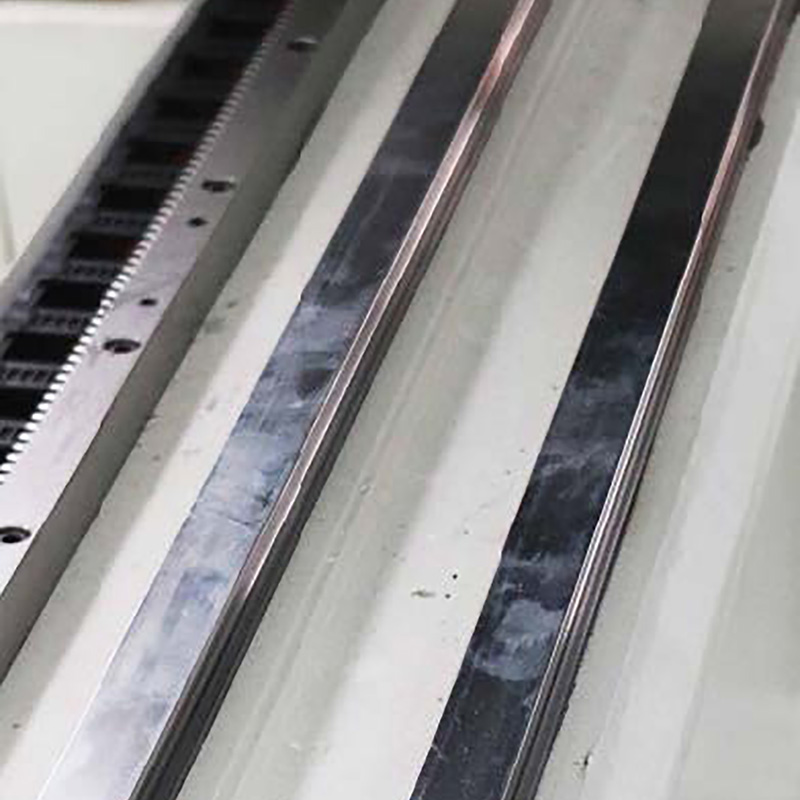

Precision guide rails produced in Taiwan, dust-proof design, smooth operation.

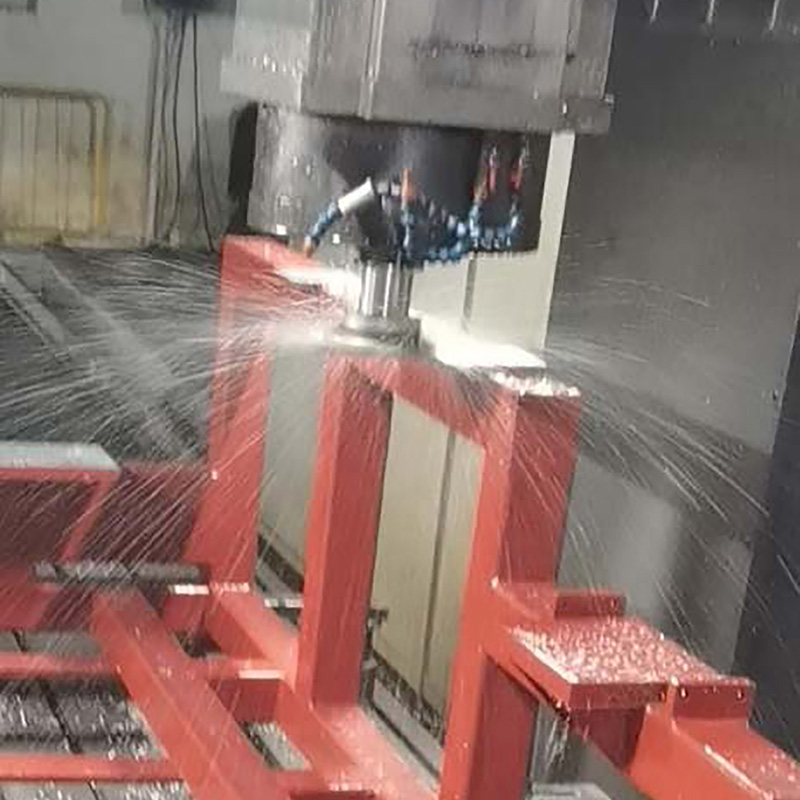

High stability body structure design, CNC five-axis machining frame, after heat treatment, reduce stress, increase stability and service life.
