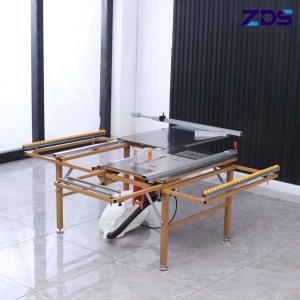

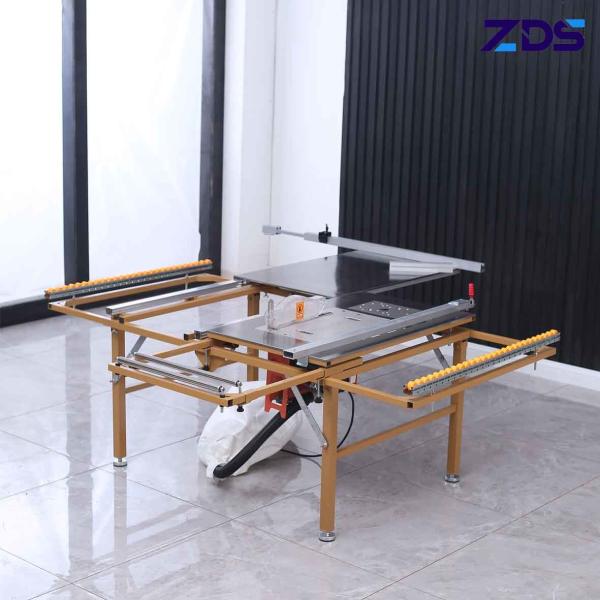

Woodworking Sliding Panel Saw Machine For Cutting Plywood
This sliding table saw adopts double invisible precision guide rails, which can push and pull smoothly. The folding saw table with universal wheels can be placed in the trunk of the car, making it more convenient to carry. The three sides are stretched and extended, and one person can cut large pieces of board. Bevel and cross-cut 45°, precise and portable, stable and reliable, suitable for all woodworking decoration use.
Adopt customized high-power all-copper motor, stable operation and high efficiency;
Large and small saw head design, smooth cutting;
Independent external switch, easy to operate and labor-saving;
High-power vacuum cleaner, with dust cover, the dust removal effect is better;
Multi-angle, multi-function cutting, easy to control;
Clever design, easy to move when folded
| Name | Woodworking Sliding Panel Saw Machine For Cutting Plywood |
| Model | ZDS80 |
| Platform size | 120*98cm |
| Unfold size | 210*248*75cm |
| Folding size | 100*60*35cm |
| Guide | 8*4*100cm Precision guide rail |
| Weight | 77kg |
| Flip board | 50*30cm |
| Manual lift saw head | Factory default |
| Electric lift saw head | Optional |
| Electric upgrade brushless saw head | Optional |
| Working voltage | 220v/50Hz |
| Big saw power | 2600w |
| Small saw power | 1600w |
| Big saw speed | 4500r/min |
| Small saw speed | 13000r/min |
| Vacuuming power | 1200w |
| Vacuum motor speed 1200r/min | 12000r/min |
| Saw blade size | Big saw | 8inch |
| Small saw | 4inch |
| Lifting height method | Big saw | Electric |
| Small saw | Manually |
| Warranty period of core parts | 1 Year |
| Comes with accessories | 1 manual/1 dust bag/1 dust tube/1 dust connector/1 dust cover/1 bracket/2 spring/several wrenches |
| Use range | Solid wood floor/laminate floor/bamboo floor/PVC plastic board/cork floor/plywood/MDF, etc. |
Aluminum alloy square rail slides smoothly and smoothly
With its own angle ruler, the cutting angle can be adjusted at will, and the operation is convenient
Laser-printed scale, accurate and wear-resistant
Folded and equipped with universal wheels, easy to carry and move
Precautions:
1. Open the package, check the product carefully, and handle it with care
2. When installing and disassembling the product, please disconnect the power supply to avoid electric shock
3. The motor is a brushed motor, and the condition of carbon brushes needs to be checked regularly
4. Be sure to clean the sawdust, gypsum, and the accumulated sawdust in the vacuum bag every shift, and keep the motor and fan body clean
5. Pay attention to cutting gypsum board, and you must clean up the inside and outside of the whole machine immediately (focus on cleaning the inside and outside of the fan)
